Operating Limits

• Suction lift up to 9m
• Clean Water, Non – Aggressive liquid
• Fluid temperature up to 40°C
• Maximum ambient temperature 40°C

Pumps Installation and Applications

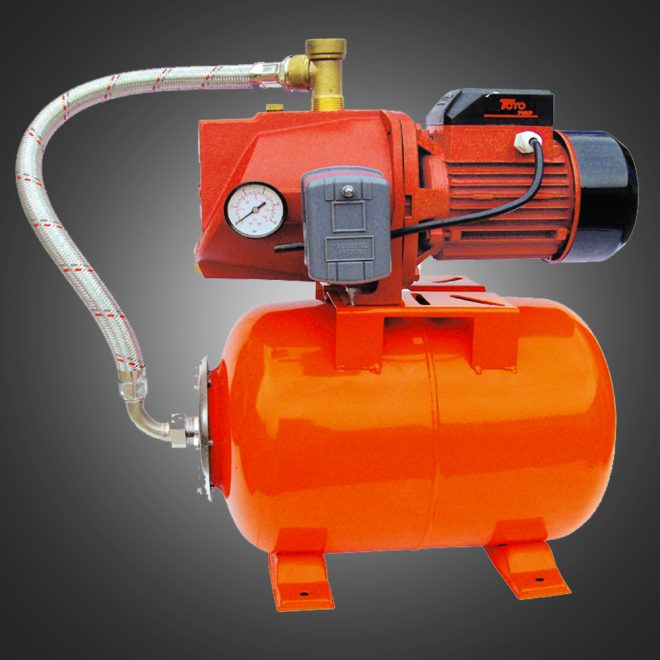

“TOYO” water pressure pump is suitable for pumping clean water and fluids which are not chemically aggressive to
the pump components. This is extremely reliable, economical and simple to use, being particularly suitable for domestic applications such as the automatic distribution of water from small and medium-sized surge tanks, watering gardens, etc. “TOYO” pump should be installed in a covered area, protected against the weather. It is always advisable to install a foot valve or a non-return valve on the suction opening.

Performance

• Flow rate upto 80 ltr./min.
• High tolerance of the presence of entrained air in the fluid to be pumped;
• Suction capacity up to 9 meters.

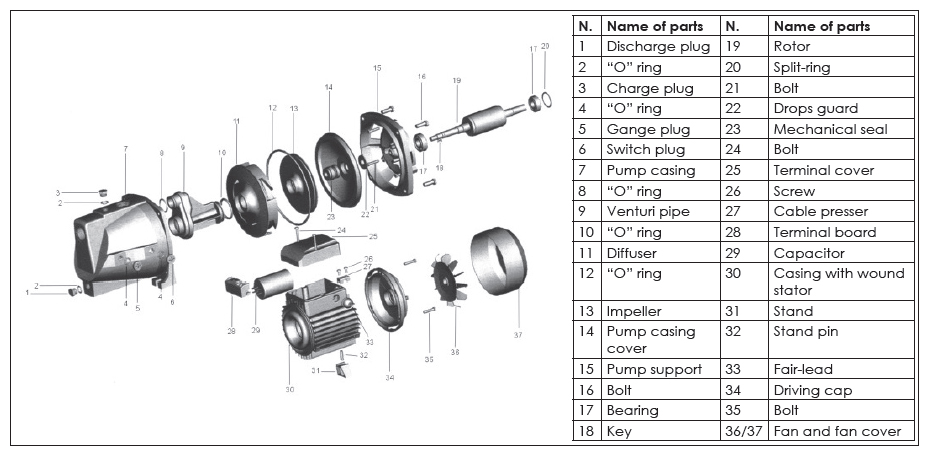

Structural Characteristics

• 100% Copper Winding
• Cast iron pump body
• Stainless steel pump body cover
• Stainless steel mechanical seal (graphite to ceramic)
• Brass impeller with centrifugal radial flow type
• Anti -rust shaft (Hi-Cr plated 45# steel shaft)
• Protection Ip44
• With thermal overload protector
• C&U bearing
